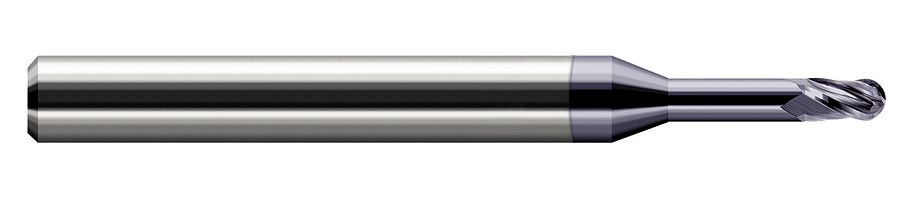

Picture of Harvey Tool 33514-C3 .218 Ball Carbide Stb FL 5x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 33514-C3 .218 Ball Carbide Stb FL 5x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR33514-C3 0.219 x 0.250 x 0.330 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.40
SKU: 1286580

Description

HARVEY Tool End Mill Carbide AlTiN Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Length Of Cut 0.3300 8.38MM
Neck Length 1.1250 28.58MM
Flutes/Inserts 3
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Dia 0.2188 5.56MM - 7/32
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
