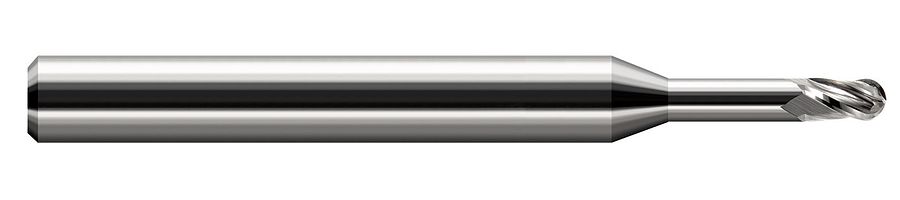

Picture of Harvey Tool 33510 Dia 5/32 LOC 0.2340 OAL 3.00 End Mill Standard Helix Carbide Uncoated Single End Ball NoseBall

Harvey Tool 33510 Dia 5/32 LOC 0.2340 OAL 3.00 End Mill Standard Helix Carbide Uncoated Single End Ball NoseBall

Part Number: HAR33510 0.156 x 0.188 x 0.234 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.80
SKU: 1282555

Description

HARVEY Tool End Mill Carbide Uncoated Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Length Of Cut 0.2340 5.94MM
Neck Length 0.7500 19.05MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1563 3.97MM - 5/32
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
