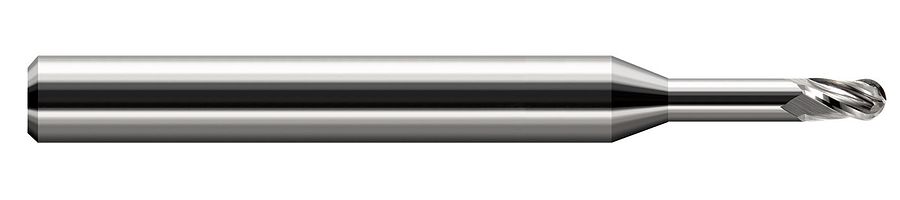

Picture of Harvey Tool 33509 Dia 0.14 LOC 0.2200 OAL 3.00 End Mill Standard Helix Carbide Uncoated Single End Ball NoseBall

Harvey Tool 33509 Dia 0.14 LOC 0.2200 OAL 3.00 End Mill Standard Helix Carbide Uncoated Single End Ball NoseBall

Part Number: HAR33509 0.140 x 0.188 x 0.220 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.80
SKU: 1282554

Description

HARVEY Tool End Mill Carbide Uncoated Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Length Of Cut 0.2200 5.59MM
Neck Length 0.7500 19.05MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1400 3.56MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
