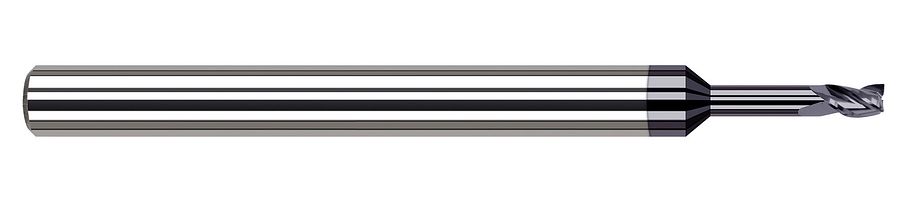

Picture of Harvey Tool 33217-C3 .017 Dia Carbide Stb FL 5x RCH EM, AlTiN End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp

Harvey Tool 33217-C3 .017 Dia Carbide Stb FL 5x RCH EM, AlTiN End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR33217-C3 0.017 x 0.125 x 0.026 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1286448
Vendor: Sussex Tool and Supply
$49.10
HARVEY TOOL Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 3 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0170 0.43MM
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.0260 0.66MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Neck Length 0.0850 2.16MM
Taper/Straight Flute Straight Flute
