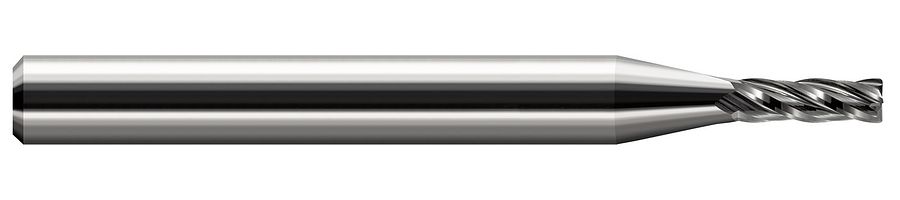

Picture of Harvey Tool 32445 .125 D x .045 R CRad EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0450 1.14mm

Harvey Tool 32445 .125 D x .045 R CRad EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0450 1.14mm

Part Number: HAR32445
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1240807
Vendor: Sussex Tool and Supply
$23.90

Description

HARVEY TOOL Standard Helix End Mill Carbide Uncoated Corner Radius 0.0450 1.14MM Standard Flute Flutes 4 Single End HARVEY Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Geometry & Angles
Corner Radius 0.0450 1.14MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
