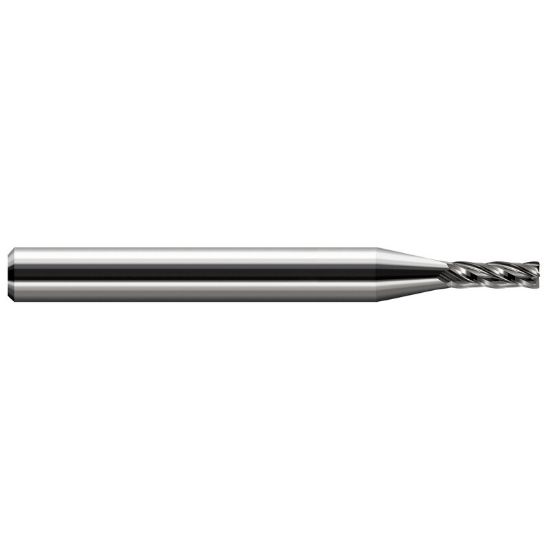

HARVEY Tool 32412 .125 D x .012 R CRAD EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0120 0.30MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR32412
Delivery date: 3-5 days
$25.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Taper Flute No
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 4
Corner Radius 0.0120 0.30MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Type Standard
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
