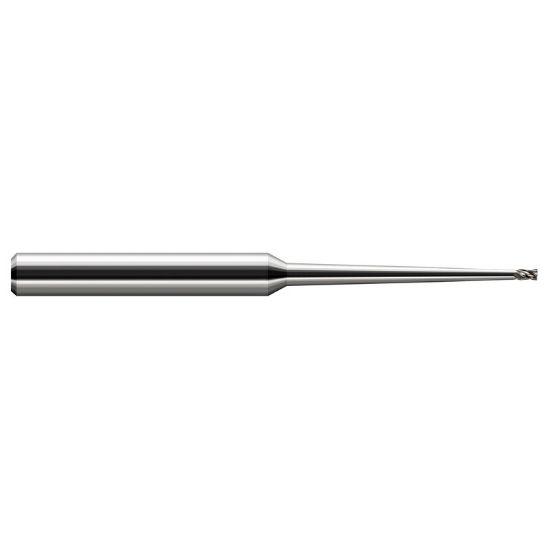

HARVEY Tool 30831 .031 D x 1.0 RCH CLEAR EM, 4 FLEngraving Carbide Uncoated Single End Engraver

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR30831
Delivery date: 3-5 days
$75.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Application Engraving
Dimensional Specifications
Overall Len 4.0000 101.60MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Dimension Description 0.031 x 0.250 x 0.047 x 4.000
Cutter Dia 0.0310 0.79MM - #68
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.0470 1.19MM
Flutes/Inserts 2
Length Type Standard
End Of Tool Shape Engraver
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Engraving
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
