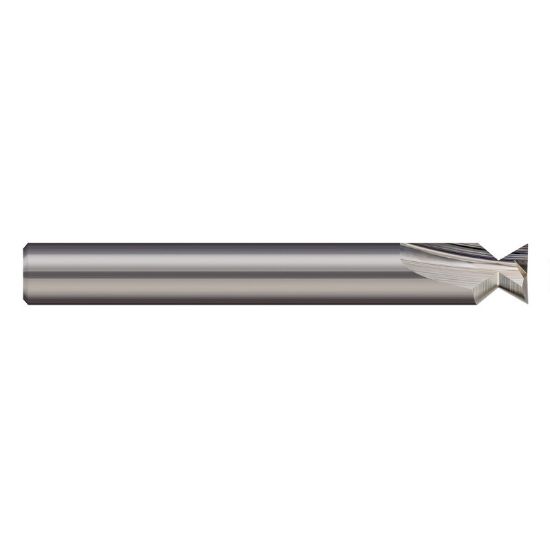

HARVEY Tool 28516 1/4 D x 40 DEG x .010 R Dovetail, 2 FL Dovetail Carbide Uncoated Single End Dovetail

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR28516
Delivery date: 3-5 days
$106.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling
Performance Rating General Performance
Made In USA Yes
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Taper Flute No
Flutes/Inserts 2
Cutter Style Dove Tail
End Of Tool Shape Dove Tail
Single/Double End Single End
Chamfer Angle 40.0°
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
