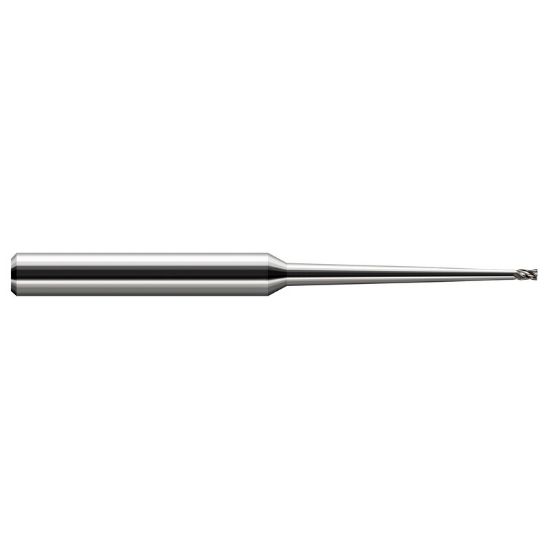

HARVEY Tool 28331 .031 D x 1.5 RCH CLEAR EM, 2 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR28331
Delivery date: 3-5 days
$81.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating General Performance
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.0470 1.19MM
Dimension Description 0.031 x 0.250 x 0.047 x 4.000
Cutter Dia 0.0310 0.79MM - #68
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Overall Len 4.0000 101.60MM
Length Type Standard / Taper Neck
Taper Flute No
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
