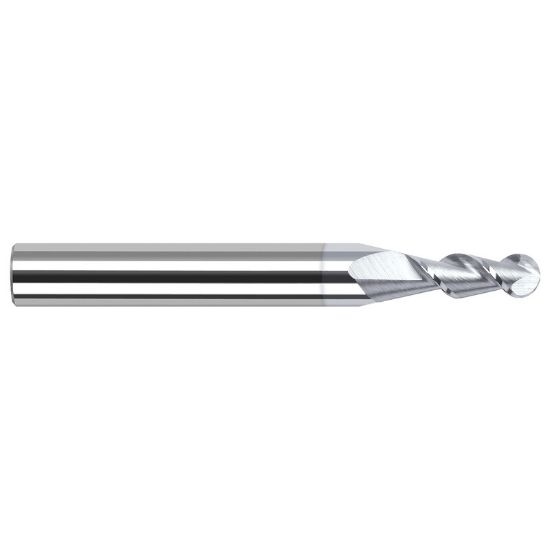

Picture of Harvey Tool 27840-C8 .040 Ball x 45 Helix CarbideEM, 2 FL TiB2 End Mill Standard Helix Carbide TiB2 Single End Ball NoseBall

Harvey Tool 27840-C8 .040 Ball x 45 Helix CarbideEM, 2 FL TiB2 End Mill Standard Helix Carbide TiB2 Single End Ball NoseBall

Part Number: HAR27840-C8 0.040 x 0.125 x 0.120 x 1.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$49.70
SKU: 1286105

Description

HARVEY Tool End Mill Carbide TiB2 Ball Nose 2 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Length Of Cut 0.1200 3.05MM
Flutes/Inserts 2
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0400 1.02MM - #60
Performance & Capacity
Performance Rating General Performance
Cut Rating Aluminum, Graphite, Plastic
Materials & Finish
Cutting Edge Mat Carbide
Coating TiB2
Tool Material Carbide
