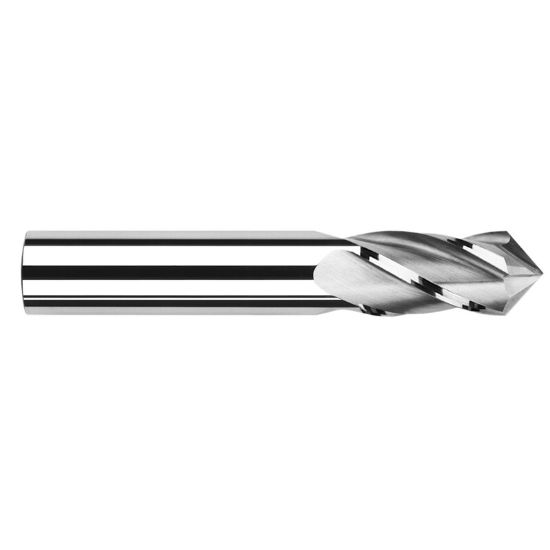

HARVEY Tool 27420 5/16 D x 100 Carbide Drill /Mill, 4 FLDrill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR27420
Delivery date: 3-5 days
$58.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Side Milling, Drilling, Multi Funcion Tools
Made In USA Yes
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.313 x 0.313 x 0.812 x 2.500
Overall Len 2.5000 63.50MM
Single/Double End Single End
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 4
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.8120 20.62MM
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
