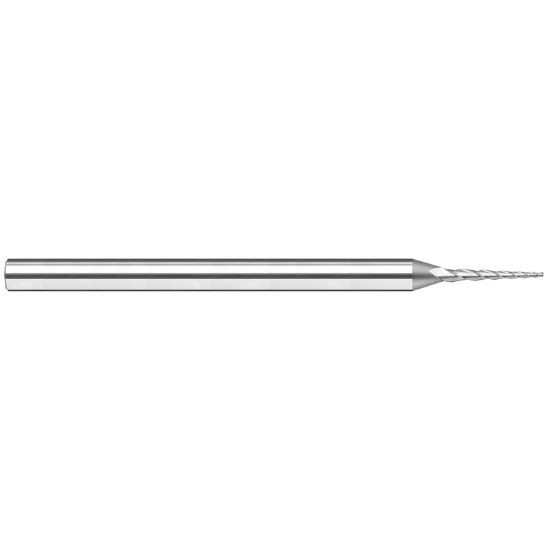

HARVEY Tool 27130 .030 D x 5.0 DEG Carbide TaperED EM End Mill Taper Flute Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR27130
Delivery date: 3-5 days
$68.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State Massachusetts
Made In USA Yes
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Taper Angle 5.0°
Single/Double End Single End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.0300 0.76MM
Machine Side Connection Size 0.1875 4.76MM
Taper Flute Yes
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
Length Of Cut 0.3000 7.62MM
End Of Tool Shape Square
Dimension Description 0.030 x 0.188 x 0.300 x 3.000
Overall Len 3.0000 76.20MM
Cutter Style Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
