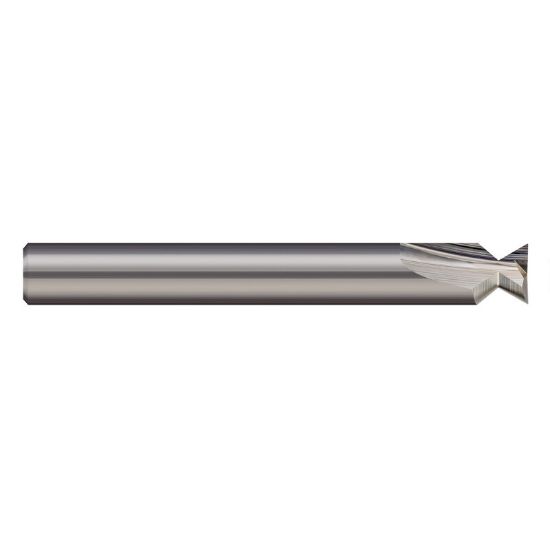

HARVEY Tool 27032 1/2 D x 10 DEG INCL Carbide Dovetail, 3 FL Dovetail Carbide Uncoated Single End Dovetail

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR27032
Delivery date: 3-5 days
$202.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling
Package Size 1
Made In USA Yes
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Chamfer Angle 10.0°
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Style Dove Tail
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Taper Angle 10.0°
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Dove Tail
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Taper Flute No
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
