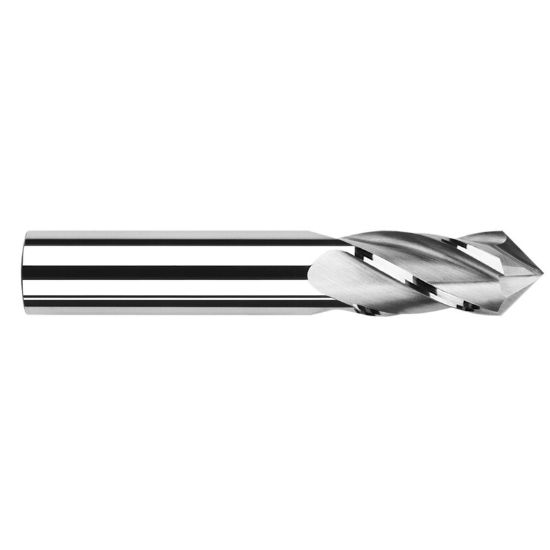

HARVEY Tool 26508 1/8 D x 82 Carbide Drill /MillS, 4 FLDrill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR26508
Delivery date: 3-5 days
$38.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Drilling, Side Milling, Multi Funcion Tools
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Taper Flute No
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.125 x 0.125 x 0.500 x 1.500
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
