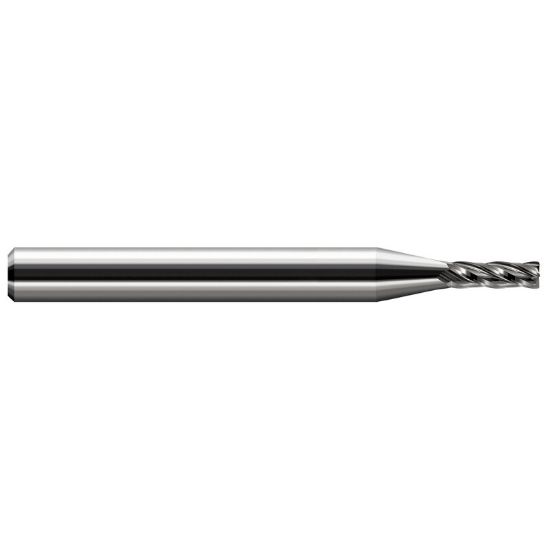

HARVEY Tool 26339 .039 D x .005 R CRAD EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR26339
Delivery date: 3-5 days
$26.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.0390 0.99MM - #61
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.1170 2.97MM
Inch/Metric Inch
Single/Double End Single End
Overall Len 1.5000 38.10MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.039 x 0.125 x 0.117 x 1.500
End Of Tool Shape Corner Radius
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Corner Radius 0.0050 0.13MM
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 4
Length Type Standard
Taper Flute No
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
