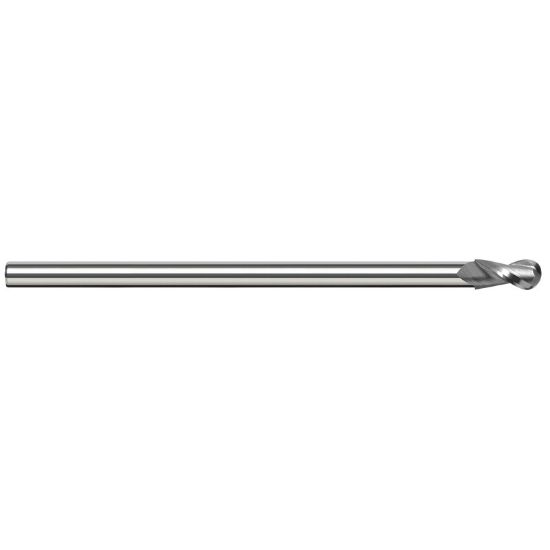

HARVEY Tool 24713 3/16 D x 5/32 Shank BALL EM, 2 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR24713
Delivery date: 3-5 days
$110.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Performance Rating General Performance
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Machine Side Connection Type Cylindrical
Length Type Standard
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Inch/Metric Inch
Taper Flute No
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
