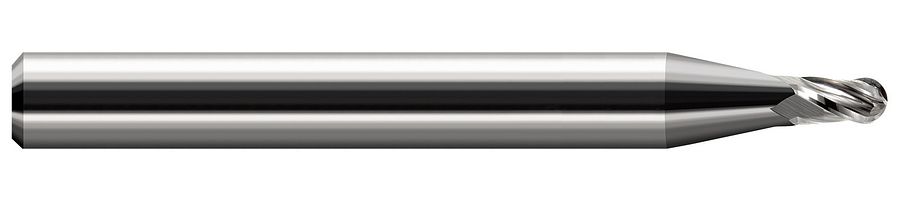

HARVEY Tool 24505 .005 BALL Carbide Stub EM, 2 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR24505
Delivery date: 3-5 days
$52.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Taper Flute No
Overall Len 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 0.0070 0.18MM
Length Type Standard
Dimension Description 0.005 x 0.125 x 0.007 x 1.500
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.0050 0.13MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
