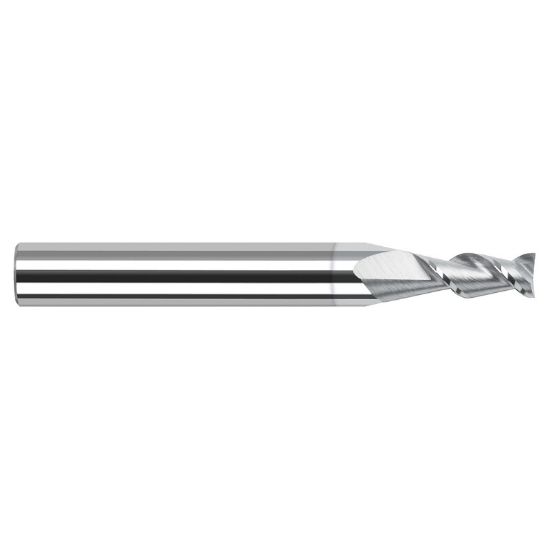

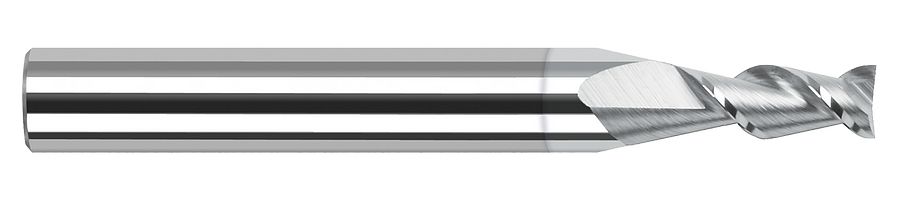

Picture of Harvey Tool 24178-C8 .078 D x 45 Helix CarbideEM, 2 FL TiB2 End Mill Standard Flute Standard Helix Carbide TiB2 Single End Ball NoseBall

Harvey Tool 24178-C8 .078 D x 45 Helix CarbideEM, 2 FL TiB2 End Mill Standard Flute Standard Helix Carbide TiB2 Single End Ball NoseBall

Part Number: HAR24178-C8
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1285704
Vendor: Sussex Tool and Supply
$29.80

Description

HARVEY TOOL Standard Helix End Mill Carbide TiB2 Ball Nose Ball Standard Flute Flutes 2 Single End HARVEY Carbide TiB2 coating is a Titanium Diboride, ceramic-based coating that provides superb erosion resistance during machining
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.0780 1.98MM
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiB2
