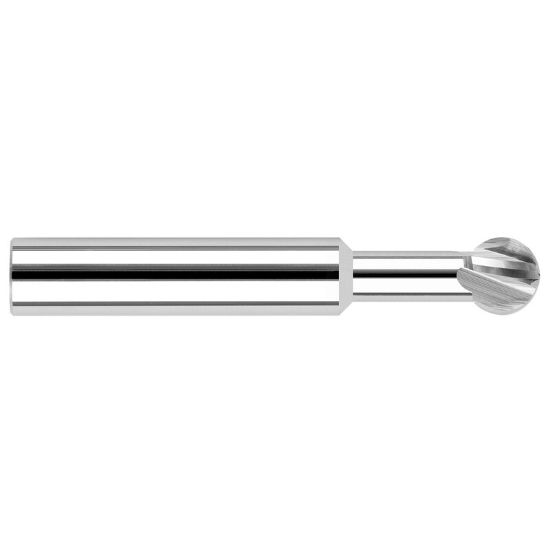

HARVEY Tool 23104 .062 D x 270 Short RCH UNDERCUT EM End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose 270°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR23104
Delivery date: 3-5 days
$42.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Under Cut Milling, Copy Milling, Ball Milling, Profile Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Taper Flute No
Machine Side Connection Type Cylindrical
Corner Radius Ball 270°
Flutes/Inserts 2
Tool Material Carbide
Inch/Metric Inch
End Of Tool Shape Ball Nose
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.0620 1.57MM
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
