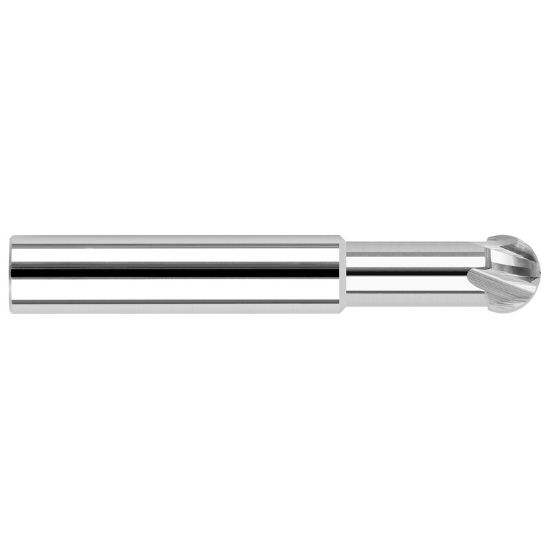

HARVEY Tool 22803 .047 D x 220 LR UNDERCUT EM End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose 220°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR22803
Delivery date: 3-5 days
$65.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Under Cut Milling, Copy Milling, Ball Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 2
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Cutter Dia 0.0470 1.19MM
Taper Flute No
Corner Radius Ball 220°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
