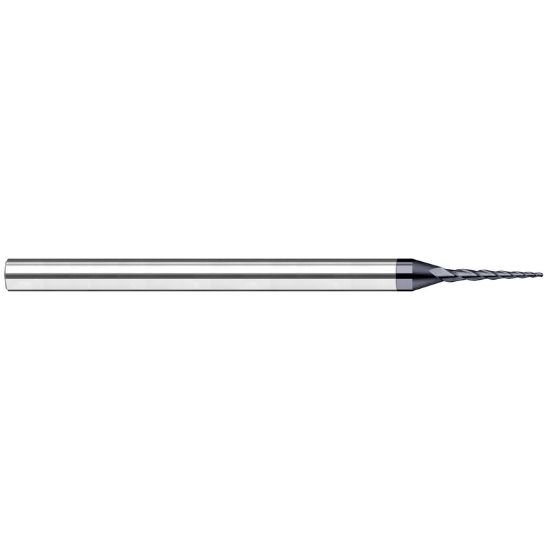

Picture of Harvey Tool 21990-C6 .090 Ball x 3.0 DEG Taper EM, AlTiN Nano End Mill Taper Flute Carbide AlTiN Single End Square Sharp

Harvey Tool 21990-C6 .090 Ball x 3.0 DEG Taper EM, AlTiN Nano End Mill Taper Flute Carbide AlTiN Single End Square Sharp

Part Number: HAR21990-C6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1285396
Vendor: Sussex Tool and Supply
$91.70
HARVEY TOOL End Mill Carbide AlTiN Square Sharp Taper Flute Flutes 3 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.2500
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.0900 2.29MM
Length Type STANDARD
Performance Rating General Performance
End Of Tool Shape Square
Cutter Style Taper Flute Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Taper Flute
Taper Angle 3.0°
