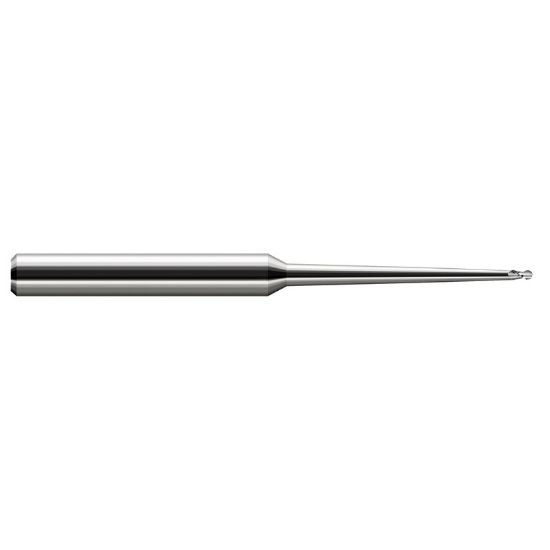

HARVEY Tool 18831 .031 BALL x 2.0 RCH CLEAR EM, 2 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR18831
Delivery date: 3-5 days
$93.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Ball Milling, Copy Milling, Profile Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Overall Len 4.0000 101.60MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.0470 1.19MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Taper Flute No
Dimension Description 0.031 x 0.250 x 0.047 x 4.000
Cutter Dia 0.0310 0.79MM - #68
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
