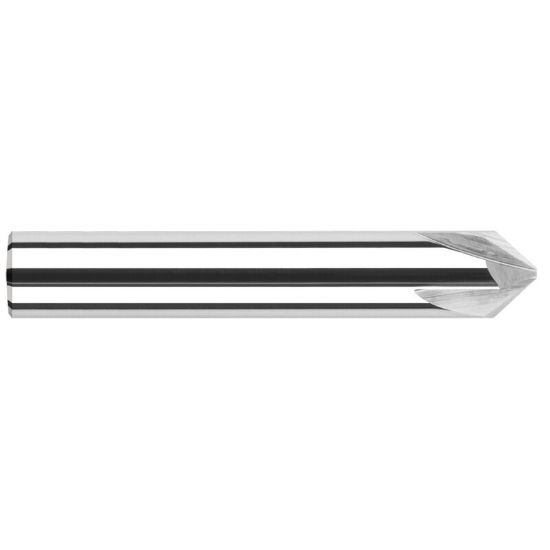

HARVEY Tool 18570 1/4 DIA x 70 DEG Carbide Chamfer Mill Carbide Uncoated Single End Cham Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR18570
Delivery date: 3-5 days
$41.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Application Chamfering
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Chamfer
Cutter Style Chamfer Mill
Taper Flute No
Chamfer Angle 140.0°
Single/Double End Single End
Flutes/Inserts 4
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
