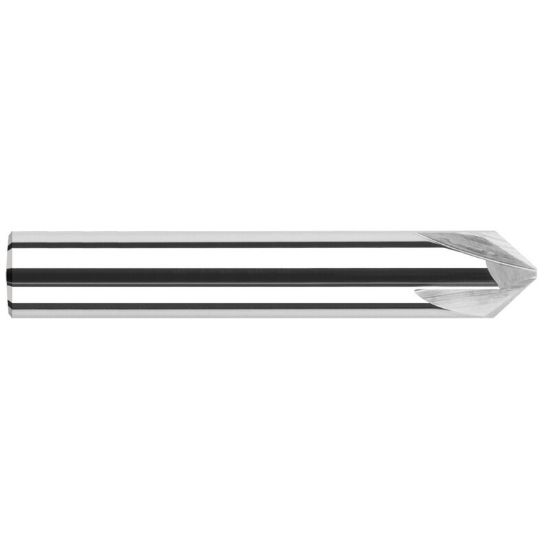

HARVEY Tool 18420 3/8 DIA x 20 DEG Carbide Chamfer Mill Carbide Uncoated Single End Cham Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR18420
Delivery date: 3-5 days
$50.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Performance Rating General Performance
Application Chamfering
Made In USA Yes
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Chamfer Mill
Taper Flute No
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Chamfer
Single/Double End Single End
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Chamfer Angle 40.0°
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Machine Side Connection Type Cylindrical
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
