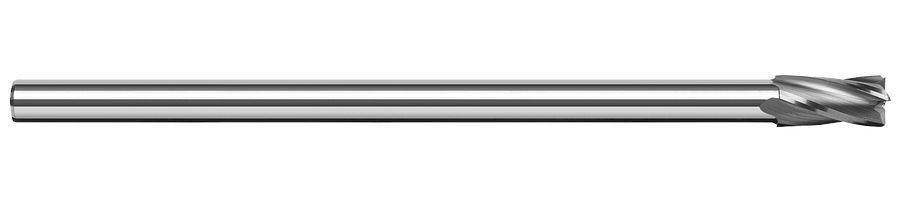

Picture of Harvey Tool 17620 5/16 D x 1/4 Shank x .015 R CRAD, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm

Harvey Tool 17620 5/16 D x 1/4 Shank x .015 R CRAD, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm

Part Number: HAR17620

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1252999
Vendor: Sussex Tool and Supply
$133.10
HARVEY TOOL Standard Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End HARVEY Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Mach Side Connection Size 0.2500
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating General Performance
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Taper/Straight Flute Straight Flute
