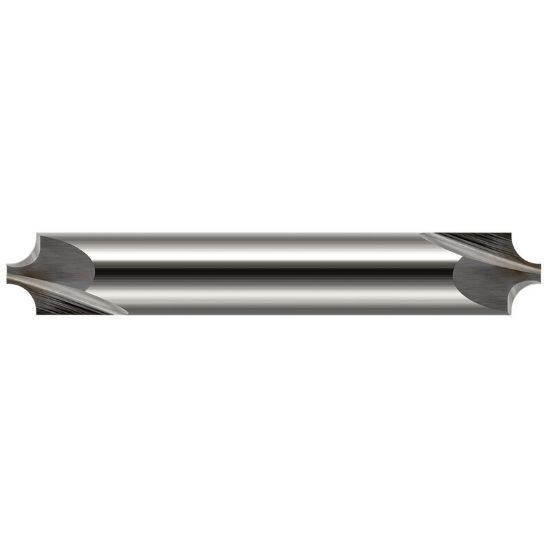

HARVEY Tool 17156 .156 R x .058 P FLRD CREM, DE 2 FL Corner Rounder Carbide Uncoated Double End Corner Rounder 0.0580 1.47MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR17156
Delivery date: 3-5 days
$125.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Corner RoundIng
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cutter Dia 0.3125 7.94MM - 5/16
Taper Flute No
End Of Tool Shape Corner Rounder
Flutes/Inserts 2
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Corner Radius 0.0580 1.47MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
