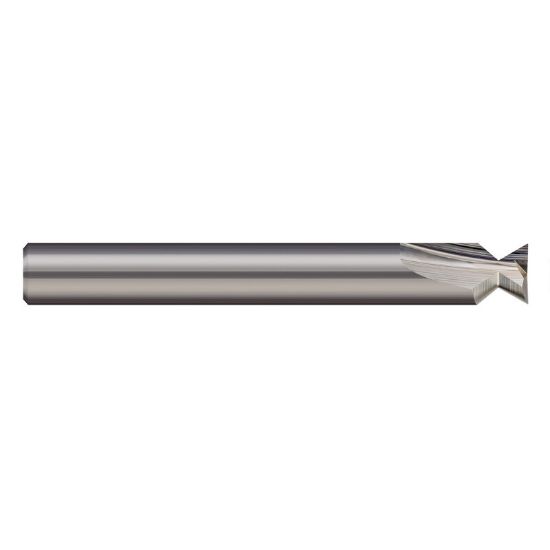

HARVEY Tool 16448 DIA 3/4 SH 0.7500 Dovetail Carbide Uncoated Single End Dovetail

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR16448
Delivery date: 3-5 days
$203.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dovetail Milling
Shipping State Massachusetts
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Length Type Standard
Flutes/Inserts 4
Cutter Style Dove Tail
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Dove Tail
Single/Double End Single End
Chamfer Angle 20.0°
Taper Flute No
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
