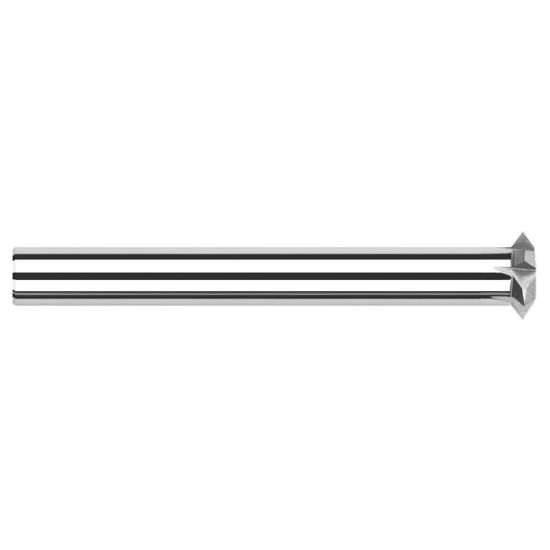

HARVEY Tool 16220 DIA 3/4 SH 0.7500 Chamfer Mill Carbide Uncoated Single End Cham Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR16220
Delivery date: 3-5 days
$167.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating General Performance
Application Chamfering, Back Chamfering
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
End Of Tool Shape Chamfer
Taper Flute No
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 8
Inch/Metric Inch
Cutter Style Carbide Double Angle Chamfer
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Chamfer Angle 60.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
