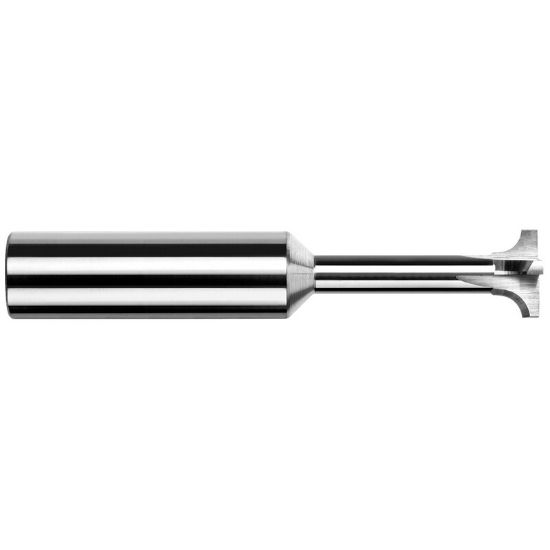

HARVEY Tool 16090 .090 R x .375 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0900 2.29MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR16090
Delivery date: 3-5 days
$129.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Application Corner RoundIng
Dimensional Specifications
Cutter Style Corner Rounder Back Side
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Neck Length 1.0000 25.40MM
Length Type Standard
Machine Side Connection Size 0.3750 9.53MM
End Of Tool Shape Corner Rounder
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
