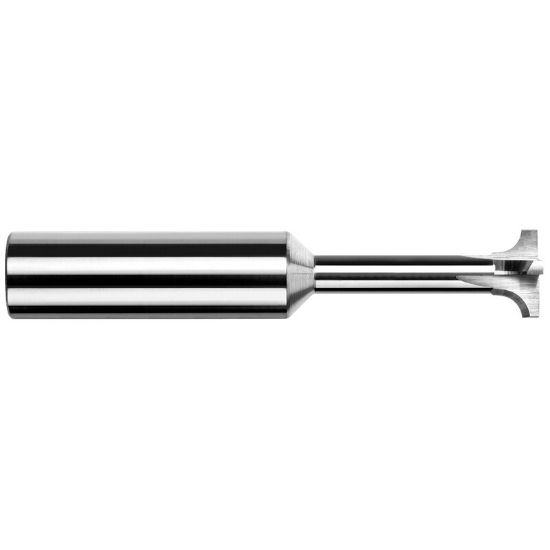

HARVEY Tool 16055 .055 R x .250 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0550 1.40MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR16055
Delivery date: 3-5 days
$81.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Application Corner RoundIng
Dimensional Specifications
Overall Len 2.5000 63.50MM
Single/Double End Single End
Corner Radius 0.0550 1.40MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Taper Flute No
Neck Length 0.6250 15.88MM
Cutter Style Corner Rounder Back Side
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
End Of Tool Shape Corner Rounder
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
