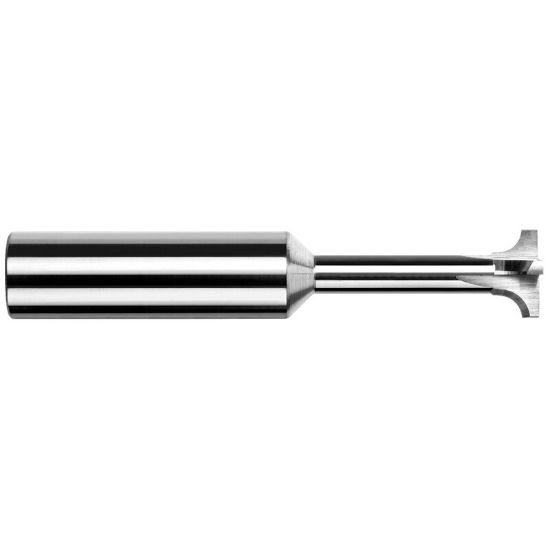

HARVEY Tool 16027 .027 R x .187 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0270 0.69MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR16027
Delivery date: 3-5 days
$74.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Application Corner RoundIng
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
End Of Tool Shape Corner Rounder
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 3
Neck Length 0.5000 12.70MM
Taper Flute No
Corner Radius 0.0270 0.69MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Corner Rounder Back Side
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
