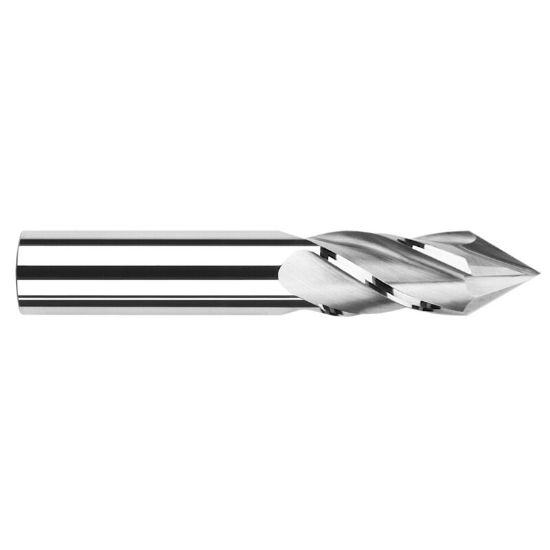

HARVEY Tool 15412 DIA 3/16 LOC 0.6250 OAL 2.00Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR15412
Delivery date: 3-5 days
$35.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Multi Funcion Tools, Side Milling, Drilling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Description 0.188 x 0.188 x 0.625 x 2.000
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Taper Flute No
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Drill Point
Single/Double End Single End
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 2.0000 50.80MM
Length Type Standard
Cutter Style Drill/Mill
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
