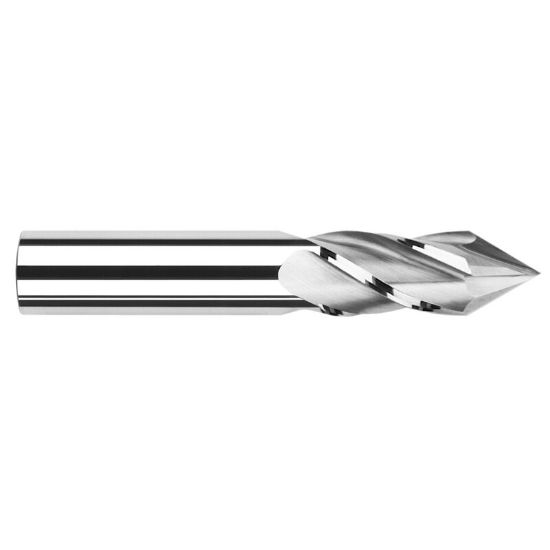

HARVEY Tool 15405 DIA 5/64 LOC 0.2500 OAL 1.50Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR15405
Delivery date: 3-5 days
$34.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Funcion Tools, Drilling, Side Milling
Made In USA Yes
Package Size 1
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Overall Len 1.5000 38.10MM
Length Of Cut 0.2500 6.35MM
Taper Flute No
Dimension Description 0.078 x 0.125 x 0.250 x 1.500
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cutter Style Drill/Mill
Flutes/Inserts 4
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Drill Point
Single/Double End Single End
Cutter Dia 0.0781 1.98MM - 5/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
