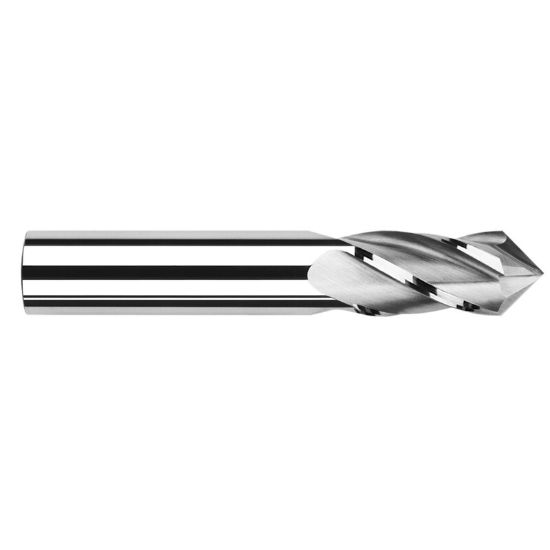

HARVEY Tool 15340 DIA 5/8 LOC 1.2500 OAL 3.50Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR15340
Delivery date: 3-5 days
$144.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Multi Funcion Tools, Side Milling, Drilling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Overall Len 3.5000 88.90MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Flutes/Inserts 2
Length Type Standard
Length Of Cut 1.2500 31.75MM
Taper Flute No
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
