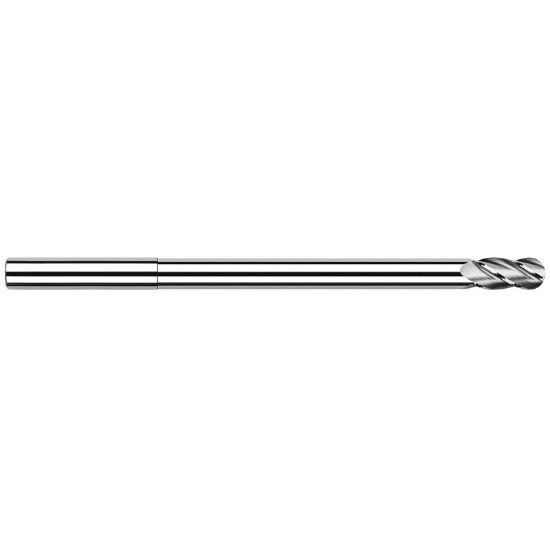

HARVEY Tool 14940 DIA 5/8 LOC 0.9380 OAL 8.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR14940
Delivery date: 3-5 days
$430.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.9380 23.83MM
Inch/Metric Inch
Dimension Description 0.625 x 0.625 x 0.938 x 8.000
Machine Side Connection Size 0.6250 15.88MM
Overall Len 8.0000 203.20MM
Cutter Style Carbide Ball Finisher
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Single/Double End Single End
Neck Length 5.6870 144.45MM
Flutes/Inserts 4
Length Type Standard / With Neck
Cutter Dia 0.6250 15.88MM - 5/8
Taper Flute No
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
