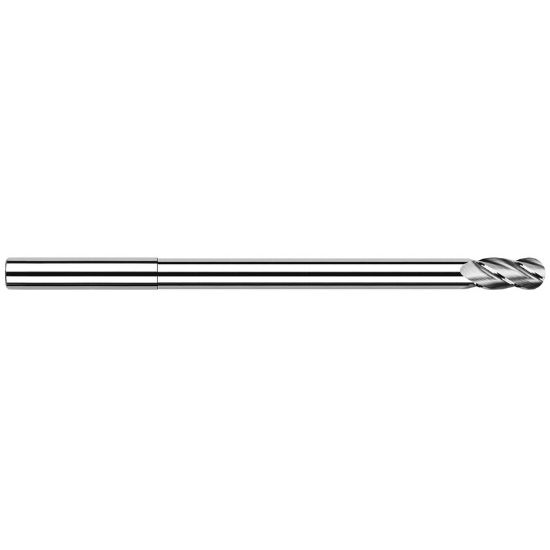

HARVEY Tool 14924 DIA 3/8 LOC 0.5630 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR14924
Delivery date: 3-5 days
$146.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Overall Len 6.0000 152.40MM
Taper Flute No
Neck Length 4.3120 109.52MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5630 14.30MM
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Dimension Description 0.375 x 0.375 x 0.563 x 6.000
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Type Standard / With Neck
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
