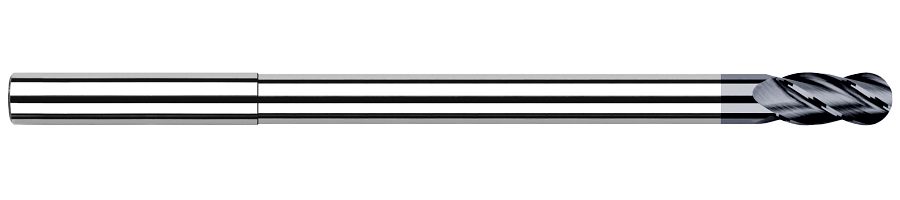

Picture of Harvey Tool 14924-C3 Dia 3/8 LOC 0.5620 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 14924-C3 Dia 3/8 LOC 0.5620 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR14924-C3 0.375 x 0.375 x 0.562 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1284915
Vendor: Sussex Tool and Supply
$162.70
HARVEY TOOL Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.5620 14.27MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Neck Length 0.5620 14.27MM
Taper/Straight Flute Straight Flute
