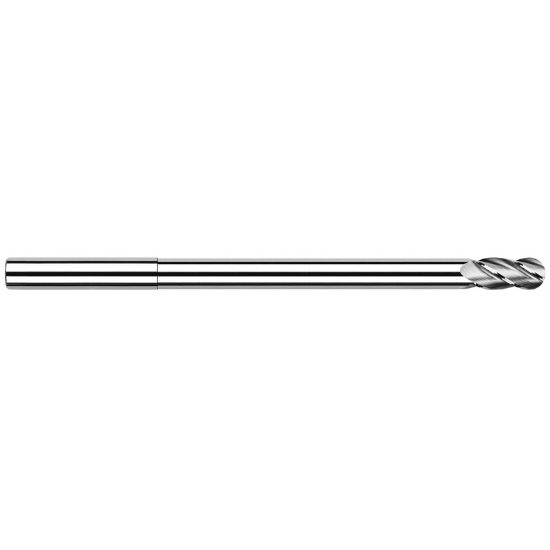

HARVEY Tool 14920 DIA 5/16 LOC 0.4700 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR14920
Delivery date: 3-5 days
$128.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Side Milling, Copy Milling, Profile Milling, Ball Slot Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Massachusetts
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Dimension Description 0.313 x 0.313 x 0.470 x 6.000
Flutes/Inserts 4
Length Of Cut 0.4700 11.94MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 4.3430 110.31MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard / With Neck
Taper Flute No
Cutter Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
