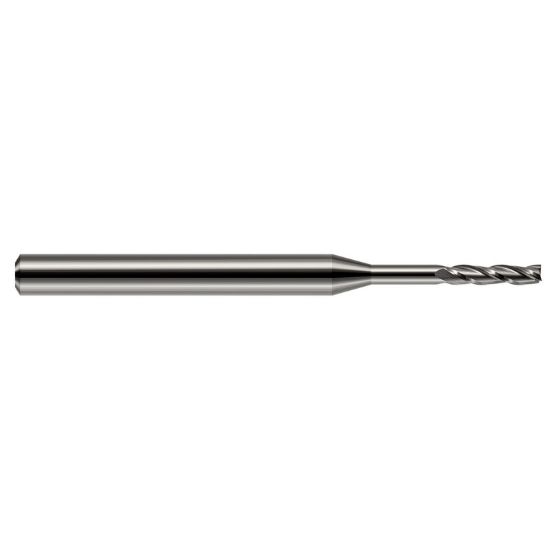

HARVEY Tool 13712 DIA 4.75MM LOC 1.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR13712
Delivery date: 3-5 days
$47.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating General Performance
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Taper Flute No
Machine Side Connection Size 0.1875 4.76MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.1870 4.75MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Of Cut 1.1250 28.58MM
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Overall Len 3.0000 76.20MM
Dimension Description 0.187 x 0.188 x 1.125 x 3.000
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
