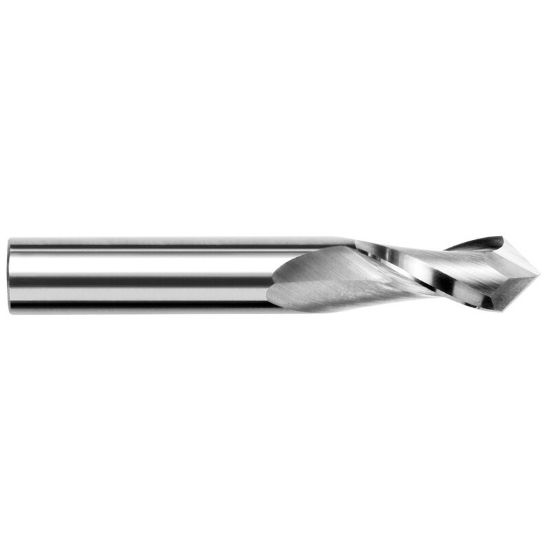

HARVEY Tool 12924 DIA 3/8 LOC 0.8750 OAL 2.50Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR12924
Delivery date: 3-5 days
$61.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Drilling, Multi Funcion Tools
Made In USA Yes
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Taper Flute No
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Dimension Description 0.375 x 0.375 x 0.875 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
