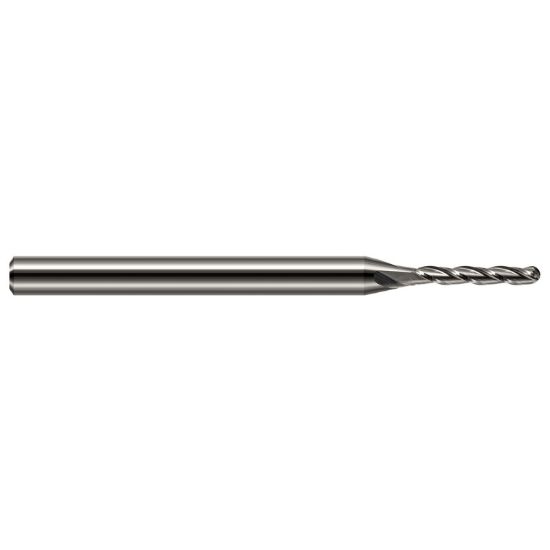

HARVEY Tool 12845 DIA 0.045 LOC 0.2250 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR12845
Delivery date: 3-5 days
$35.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Length Type Standard
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Dimension Description 0.100 x 0.125 x 0.750 x 2.500
Taper Flute No
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2250 5.72MM
Inch/Metric Inch
Cutter Dia 0.0450 1.14MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
