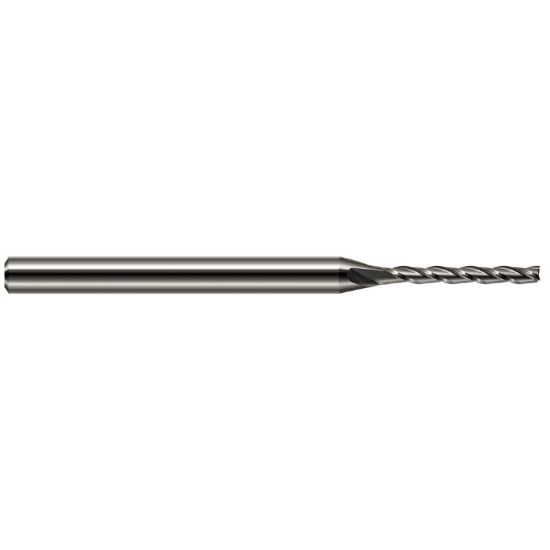

HARVEY Tool 12755 DIA 0.055 LOC 0.3850 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR12755
Delivery date: 3-5 days
$30.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Dimension Description 0.055 x 0.125 x 0.385 x 2.500
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.0550 1.40MM - #54
Overall Len 2.5000 63.50MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.3850 9.78MM
Taper Flute No
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
