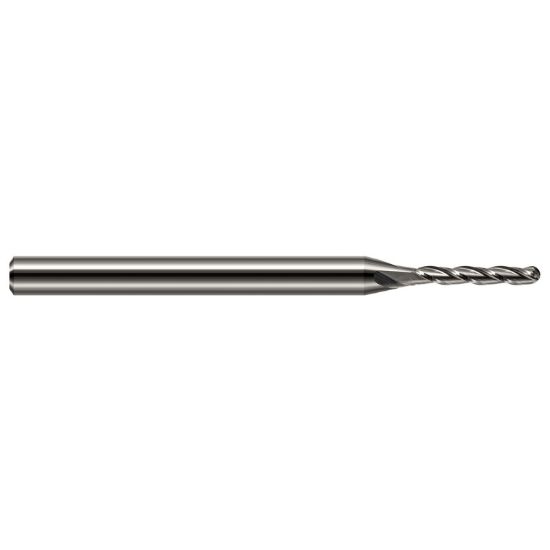

HARVEY Tool 12624 DIA 3/8 LOC 1.7500 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR12624
Delivery date: 3-5 days
$67.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Milling, Side Milling, Copy Milling, Ball Slot Milling
Shipping State Massachusetts
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 1.750 x 4.000
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Overall Len 4.0000 101.60MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.7500 44.45MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Taper Flute No
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
