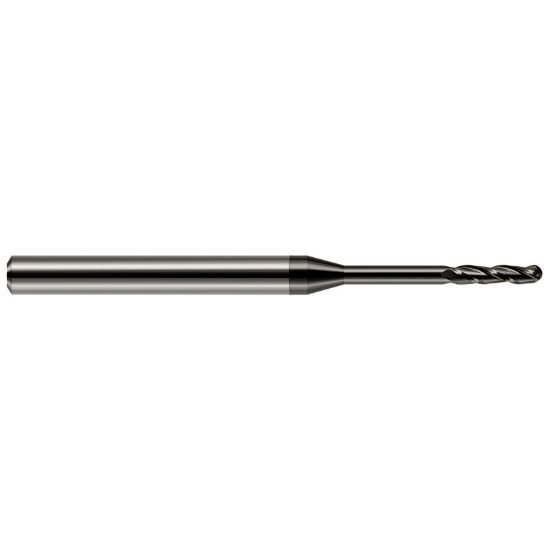

Picture of Harvey Tool 10235 Dia 0.035 LOC 0.1750 OAL 2.50 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall

Harvey Tool 10235 Dia 0.035 LOC 0.1750 OAL 2.50 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall

Part Number: HAR10235 0.035 x 0.125 x 0.175 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.40
SKU: 1252804

Description

HARVEY Tool End Mill Carbide Diamond Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Length Of Cut 0.1750 4.45MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0350 0.89MM - #65
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating Diamond
Tool Material Carbide
