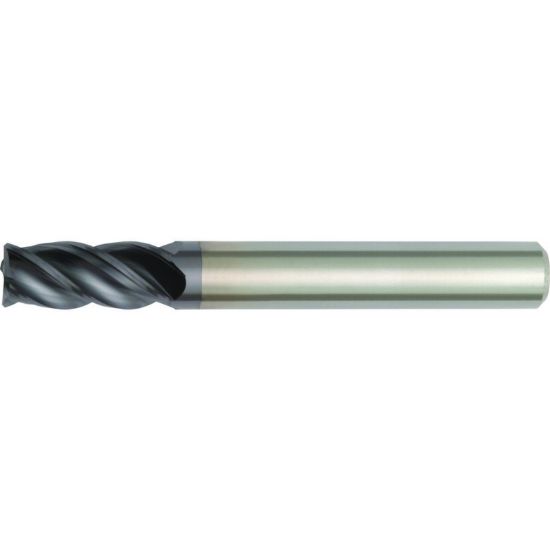

HANITA/WIDIA TF4V4513005S DIA 1/2 SH 2.00 LOC 0.6250 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V4513005S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Overall Len 2.5000 63.50MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Length Of Cut 0.6250 15.88MM
Single/Double End Single End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
Helix Angle 38°
Cutter Dia 0.5000 12.70MM - 1/2
Dimension Description 0.500 x 0.500 x 0.625 x 2.500
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
