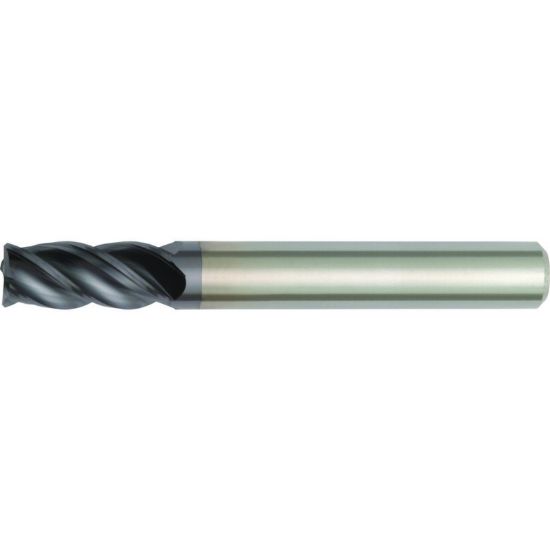

HANITA/WIDIA TF4V4510004S DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V4510004S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 0.500 x 2.000
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Helix Angle 38°
Overall Len 2.0000 50.80MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutter Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
