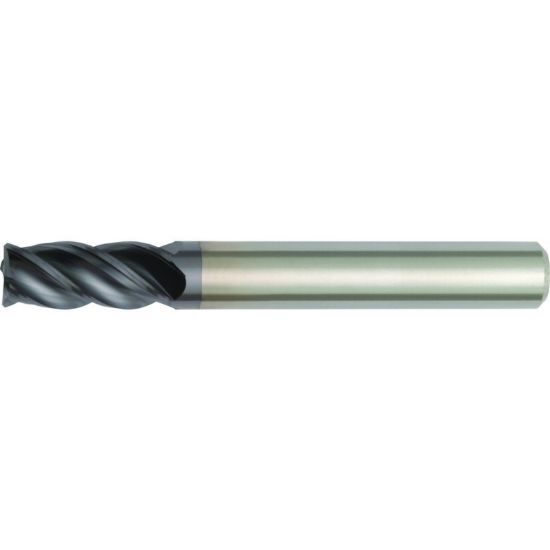

HANITA/WIDIA TF4V4505000S DIA 3/16 SH 0.1875 LOC 0.3125 OAL 1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V4505000S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard
Helix Angle 38°
Machine Side Connection Size 0.1875 4.76MM
Overall Len 1.5000 38.10MM
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Dimension Description 0.188 x 0.188 x 0.313 x 1.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Mold Yes
Agricultural YES
Energy Yes
