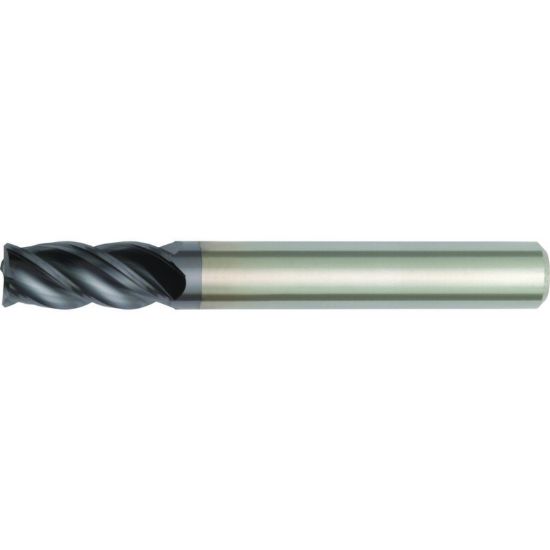

HANITA/WIDIA TF4V0513015S DIA 1/2 SH 2.00 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V0513015S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 1.250 x 3.000
Flutes/Inserts 4
Length Type Standard
Helix Angle 38°
Overall Len 3.0000 76.20MM
Machine Side Connection Size 2.0000 50.80MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Square
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Medical Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
