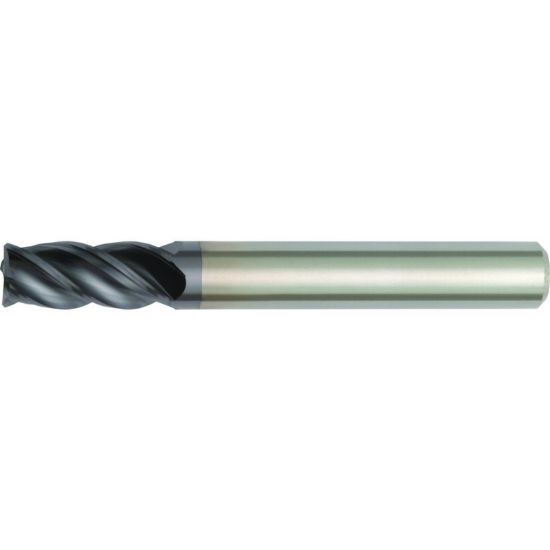

HANITA/WIDIA TF4V0513005S DIA 1/2 SH 2.00 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V0513005S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Dimension Description 0.500 x 2.000 x 1.000 x 3.000
Machine Side Connection Size 2.0000 50.80MM
Overall Len 3.0000 76.20MM
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 4
Cutter Dia 0.5000 12.70MM - 1/2
Length Type Standard
Helix Angle 38°
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
