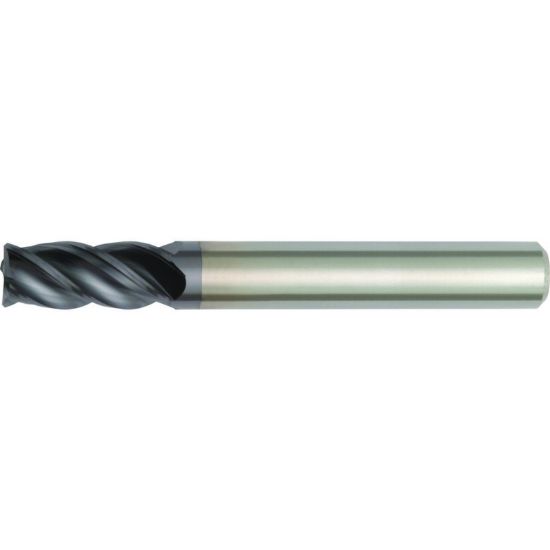

HANITA/WIDIA TF4V051101AS DIA 7/16 SH 0.4375 LOC 0.8750 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp VariMill I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HANTF4V051101AS
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
End Of Tool Shape Square
Dimension Description 0.438 x 0.438 x 0.875 x 2.500
Cutter Dia 0.4375 11.11MM - 7/16
Overall Len 2.5000 63.50MM
Helix Angle 38°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
